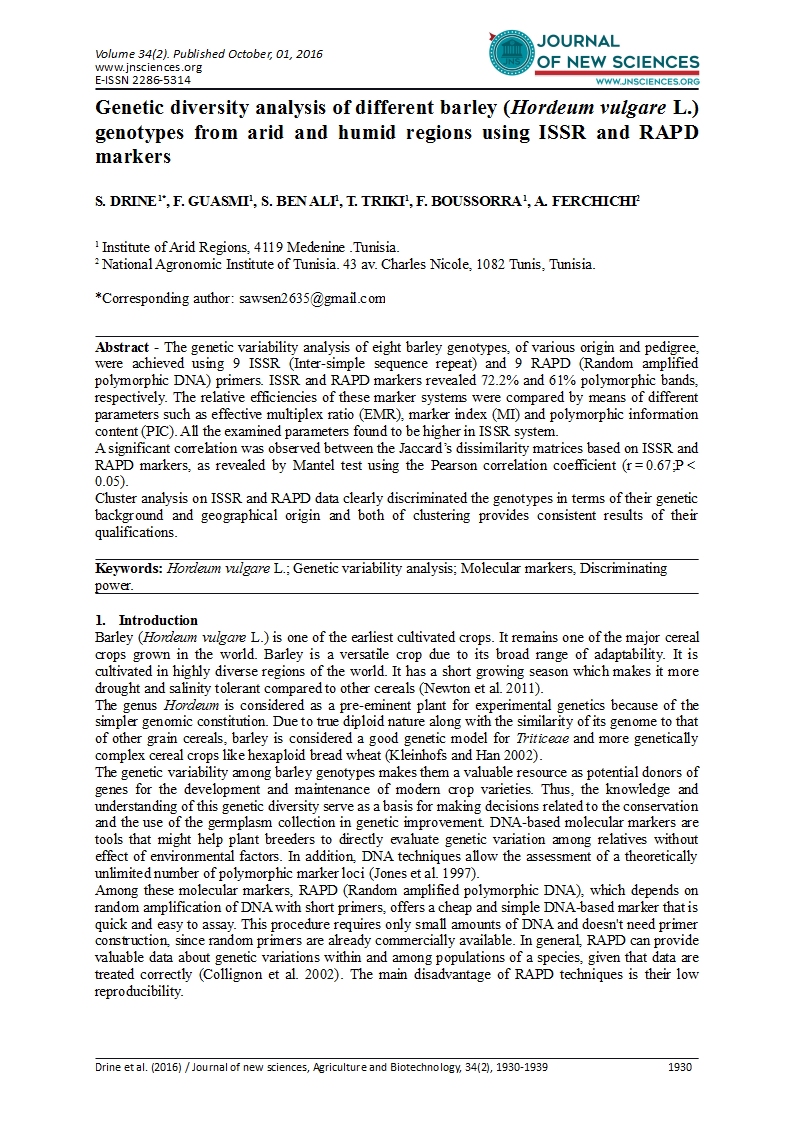

Genetic diversity analysis of different barley (Hordeum vulgare L.) genotypes from arid and humid regions using ISSR and RAPD markers

Attachments:

Volume 34, Article 2

[Volume 34, Article 2]

820 kB

S. DRINE^1*

F. GUASMI¹

S. BEN ALI¹

T. TRIKI¹

F. BOUSSORRA¹

A. FERCHICHI²

¹ Institute of Arid Regions, 4119 Medenine .Tunisia.

² National Agronomic Institute of Tunisia. 43 av. Charles Nicole, 1082 Tunis, Tunisia.

Abstract - The genetic variability analysis of eight barley genotypes, of various origin and pedigree, were achieved using 9 ISSR (Inter-simple sequence repeat) and 9 RAPD (Random amplified polymorphic DNA) primers. ISSR and RAPD markers revealed 72.2% and 61% polymorphic bands, respectively. The relative efficiencies of these marker systems were compared by means of different parameters such as effective multiplex ratio (EMR), marker index (MI) and polymorphic information content (PIC). All the examined parameters found to be higher in ISSR system.

A significant correlation was observed between the Jaccard’s dissimilarity matrices based on ISSR and RAPD markers, as revealed by Mantel test using the Pearson correlation coefficient (r = 0.67;P < 0.05).

Cluster analysis on ISSR and RAPD data clearly discriminated the genotypes in terms of their genetic background and geographical origin and both of clustering provides consistent results of their qualifications.

Keywords: Hordeum vulgare L.; Genetic variability analysis; Molecular markers, Discriminating power.

1. Introduction

Barley (Hordeum vulgare L.) is one of the earliest cultivated crops. It remains one of the major cereal crops grown in the world. Barley is a versatile crop due to its broad range of adaptability. It is cultivated in highly diverse regions of the world. It has a short growing season which makes it more drought and salinity tolerant compared to other cereals (Newton et al. 2011).

The genus Hordeum is considered as a pre-eminent plant for experimental genetics because of the simpler genomic constitution. Due to true diploid nature along with the similarity of its genome to that of other grain cereals, barley is considered a good genetic model for Triticeae and more genetically complex cereal crops like hexaploid bread wheat (Kleinhofs and Han 2002).

The genetic variability among barley genotypes makes them a valuable resource as potential donors of genes for the development and maintenance of modern crop varieties. Thus, the knowledge and understanding of this genetic diversity serve as a basis for making decisions related to the conservation and the use of the germplasm collection in genetic improvement. DNA-based molecular markers are tools that might help plant breeders to directly evaluate genetic variation among relatives without effect of environmental factors. In addition, DNA techniques allow the assessment of a theoretically unlimited number of polymorphic marker loci (Jones et al. 1997).

Among these molecular markers, RAPD (Random amplified polymorphic DNA), which depends on random amplification of DNA with short primers, offers a cheap and simple DNA-based marker that is quick and easy to assay. This procedure requires only small amounts of DNA and doesn't need primer construction, since random primers are already commercially available. In general, RAPD can provide valuable data about genetic variations within and among populations of a species, given that data are treated correctly (Collignon et al. 2002). The main disadvantage of RAPD techniques is their low reproducibility.

Moreover, ISSR (Inter-simple sequence repeat) markers are very useful for estimating the genetic diversity in plants. ISSR analysis involves the polymerase chain reaction (PCR) amplification of regions between adjacent, inversely oriented microsatellites, using a single simple sequence repeat (SSR) motifs (di-, tri-,tetra-, or penta nucleotides) containing primers anchored at the 3' or 5' end by two to four arbitrary, often degenerate nucleotides (Zietkiewicz et al. 1994).

Both markers, ISSR and RAPD, are widely used for genetic diversity studies in several species such as wheat (Liu et al. 1999; Sofalian et al. 2009), barley (Hou et al. 2005; Tanyolac 2003), cotton (Rana et al. 2007) and triticale (Sozen 2010).

Therefore, in the present research we used ISSR and RAPD markers to investigate the genetic diversity among 8 barley genotypes from North Africa (Tunisia), Middle East (Jordan) and from Europe (United Kingdom).The objectives of this study were: to distinguish these genotypes, to estimate the genetic diversity and relationship among these barley resources, and to compare the usefulness and the effectiveness of ISSR and RAPD markers for the assessment of genetic diversity of barley genotypes.

2. Materials and Methods

2.1. Plant materials

In the present study, 8 barley cultivars of diverse geographic origins were used. Names, pedigree, and some characteristics of these tested barley varieties are presented in Table 1. Seeds of Jordanian and United Kingdom varieties were obtained from John Innes Center (Norwich, UK).

2.2. DNA extraction

Total genomic DNA was extracted from 6-day-old seedlings (about 1g fresh weight) following a protocol, as described by Edwards et al. (1991).The DNA quality was checked by staining DNA with ethidium bromide (0.1µg/ml) after electrophoresis in 1% agarose gel at 100V for 1hour in 0.5xTBE buffer.

2.3. RAPD analysis

RAPD analysis was carried out with 15 decamer random primers from “Operon molecular for life”. Only nine primers that gave clear and polymorphic amplification patterns were used for genetic diversity analysis. These primers, their names, sequences, and annealing temperatures are listed in Table2 (Guasmi et al. 2012).

PCR (Polymerization Chain Reaction) reactions were performed in a 20μL volume containing 50ng genomic DNA, 2mM MgCl₂, 200µM each of dATP, dCTP, dGTP and dTTP, 0.8µM of each primer (Forward and Reverse), 1U Taq DNA polymerase (Thermo Fisher) and 4µl of 10X Taq buffer (with (NH₄)₂SO₄). PCRs were performed in a thermocycler ‘Cleaver scientific Ltd’. The PCR conditions included initial denaturation at 94°C for 3 min, followed by 45 cycles: denaturation at 94°C for 30sec, annealing at Tm (°C) of each primer (45sec) and extension at 72°C for 2 min, with a final extension at 72°C for 7 min. The amplified products were subjected to electrophoresis at 80 volt on 2% agarose gel. Bands in gels stained with ethidium bromide were visualized under ultraviolet light using UVP gel documentation system. In order to evaluate the reproducibility of the DNA profile, DNA isolation and PCR reactions were carried out 3 times, and only well-defined and reproducible bands were scored (Pérez de la Torre et al. 2012).

2.4. ISSR analysis

The reaction mixture contained the following in a total volume of 20μl: 100ng of template DNA, 1.2µM of each primer, 0,2 mM of each desoxyribonucleotide (dNTP), 1U Taq DNApolymerase (Thermo Fisher), 2.5 μl of 10X Taq buffer (with (NH₄)₂SO₄) and 2mM of MgCl2. DNA amplification was carried out using a Thermolcycler (gen‐Amp PCR system 9700) and reactions were submitted to the following PCR program; 94ºC for 3 min to pre-denature followed by 35 cycles, each with denaturation at 94ºC for 1min, primer annealing at Tm(°C) for 1min and extension at 72ºC for 2min followed by a final extension at 72ºC for 5min {Pérez de la Torre, 2012 #234}(Guasmi et al. 2012).

ISSRs primers, their names, sequences, and annealing temperatures used in PCR reactions are listed in Table3.

The PCR products were loaded on 2% agarose gel and stained with ethidium bromide. The run was performed at a constant voltage of 80 volt and amplified products were detected under ultraviolet light by UVP Gel documentation system. The bands were considered reproducible and scorable only after observing and comparing them in three separate amplifications for each primer and each cultivar.

2.5. Statistical analysis

Amplified fragments using ISSR and RAPD markers were classified as present (represented by 1) or absent (represented by 0) in each cultivar.

For both marker systems, only fragments between 100bp and about 1000bp were scored. The bands were considered reproducible and scorable only after observing and comparing them in three separate amplifications for each primer and each cultivar. Clear and intense bands were scored while faint bands against background smear were not considered for further analysis.

A dissimilarity matrix was generated with DARwin software (version 6.0.12) using the Jaccard coefficient (Perrier et al. 2003; Perrier and Jacquemoud 2006). A dendrogram was then constructed on the basis of unweighted neighbor-joining method.

The robustness of the tree was estimated by the Bootstrap method with 2000 replicates. A bootstrap value of 70% or greater was considered as strong support.

Correlation between the distance matrices obtained from RAPD and ISSR data was calculated by Mantel test at p= 5% with 5000 permutations (Mantel 1967) using XLSTAT 2014 software.

Discriminating power of each DNA marker was assessed by means of three parameters; polymorphic information content (PIC), effective multiplex ratio (EMR), and marker index (MI).

The polymorphism information content (PIC) value for each locus was calculated according to (Roldán-Ruiz et al. 2000); PIC_i = 2f_i (1 -f_i) where PIC_i is the PIC of the locus i, f_i is the frequency of the amplified fragments (band present), and (1 - f_i) is the frequency of non-amplified fragments (band absent). The frequency was calculated as the ratio between the number of amplified bands at each locus and the total number of accessions. The PIC of each primer was calculated using the average PIC value from all loci of each primer.

The Marker Index was calculated as proposed by Varshney et al. (2007); MI = EMR x PIC; where the EMR (Effective Multiplex Ratio) is the product of the fraction of polymorphic loci and the number of polymorphic loci for an individual assay. The Diversity Index (DI) is the average PIC values obtained for all the markers (Powell et al. 1996).

3. Results and discussion

3.1. RAPD and ISSR markers informativeness

In the present investigation, we employed RAPD and ISSR markers to differentiate the eight tested barley genotypes and to determine the molecular relationships among these cultivars.

Examples of representative gel images showing the amplification profiles of the eight genotypes by using OPD-02 (RAPD) and Am5 (ISSR) primers are represented in Figure 1.

A total of 15 RAPD primers were tested, 9 of which revealed reproducible polymorphic patterns and were used for further analysis. Amplification products using RAPD primers yielded a total of 69 scorable bands, of which 42 bands (61%) were polymorphic with an average of 4.67 polymorphic bands per primer (Table2 and 6).The highest number of the polymorphic bands (PB) (8) was obtained with AF14 primer, while the lowest number (1) was generated by AX16 primer.

The analysis of the pre-screening data using 3cultivars and12 ISSR primers showed that 3 primers failed to generate any amplification product. The 9 ISSR primers evaluated in eight barley cultivars were found to give clear and polymorphic patterns. These primers revealed high levels of diversity, detecting a total of 51 loci, 37 of them polymorphic (72.2%), averaging 4.11 polymorphic loci per primer (Table3).The number of the polymorphic bands (PB) generated by each used ISSR primers ranged from 2 (A1) to 7 (Am2) (Table3).

The mean number of amplification RAPD bands (7.67) was more than that of ISSR (5.67). And, the average number of polymorphic bands (4.67) detected by 9 RAPD primers was higher than that of the 9 ISSR primers (4.11) (Table2 and 3).

However, the percentage of ISSR polymorphic bands (72.2%) was higher than that of RAPD (61%) (Table 6).Similar results were reported by Tonk et al. (2014) who recommended ISSR in respect to higher polymorphism in triticale genotypes. However, Guasmi et al. (2012) found that RAPD markers were superior to ISSR markers in the capacity of revealing more informative bands in a single amplification in Hordeum vulgare.

3.2. RAPD and ISSR markers performance

The information on the genetic profile of each cultivar obtained using the nine ISSR and the nine RAPD primers were used to assess the marker performance through evaluation of three parameters: PIC, EMR and marker index (MI).

To determine PIC values of each ISSR and RAPD primer, we analyzed the mean of PIC values for all loci of each ISSR or RAPD primer.

PIC values of the ISSR primers ranged from 0.32 for UBC890 to 0.45 for UBC888. The average PIC value was identified 0.38 (Table3). The effective multiplex ratios (EMR) and marker index (MI) of ISSR analysis was detected 2.98 and 1.13, respectively (Table 6).

The polymorphic information content (PIC) value of RAPD primers varied from 0.12 for AX16 to 0.36 for AF14 with an average of 0.29 (Table 2). For RAPD analysis in barley genotypes, effective multiplex ratios (EMR) were estimated at 2.84, while marker index (MI) was identified 0.82 (Table 6).

The highest possible PIC value in the case of dominant marker is (0.5) (Roldán-Ruiz et al. 2000).In this study, the highest PIC values (>0.35) was obtained for 7 out of 9 ISSR loci and for 2 out of 9 RAPD loci. In comparison of average PIC values of ISSR and RAPD, it was revealed that ISSR markers exhibited higher level of polymorphism.

Our result corroborates those of Fernández et al. (2002), Hou et al. (2005) and Tonk et al. (2014) who found higher average PIC value in ISSR compared to RAPD.

It was revealed that the ISSR makers had higher effective multiplex ratio (EMR) than RAPD. Furthermore, the marker index value (MI) which is an important comparison scale, found to be higher in ISSR system (1.13) in comparison to RAPD (0.82) in barley genotypes (Table6).

MI values varied from 0.51 to 1.96 for ISSR markers and from 0.02 to 2.3 for RAPD markers and had been used to evaluate utility and efficiency of these markers. Similar results were found by Myśków et al. (2011)who revealed that MI value of ISSR was higher (1.42) than that of the RAPD (1.16) in rye inbred lines. However, Khaled et al. (2015) stated higher marker index value in RAPD in comparison with ISSR in bread wheat.

3.3. Phylogenetic relationships and cluster analysis

Jaccard’s pair-wise dissimilarity coefficient values were calculated for both ISSR and RAPD data. Genetic dissimilarity (GD) obtained from ISSR data across the 8 barley genotypes varied from 0.15 (Gp vs. My) to 0.73 (Ar vs. Ox) (Table 4).

In the case of RAPD, GD ranged from 0.19 (Gp vs. My) to 0.72 (Mr vs. Ox) (Table 5). In both ISSR and RAPD data, Golden Promise presented the lowest genetic distance face to the genotype Maythorpe (Table 4 and 5).

The level of polymorphism between the two genotypes was explored by Walia et al. (2007) . The results confirm that Golden Promise and Maythorpe are genetically very closely related.

The average GD values of barley genotypes were found 0.52 for both ISSR and RAPD markers. These results further showed a moderate level of genetic similarity across the tested genotypes. Russell et al. (1997) found that the average genetic diversity based on RAPD analyses of eighteen accessions from Netherlands, France, Great Britain, Germany and Italy was 0.521.

The dendrograms obtained by the unweighted neighbor-joining method using genetic dissimilarities based on ISSR and RAPD data are shown in Figure 2 and Figure 3, respectively.

The bootstrap values are reported on the 2 dendrograms (Figure 2 and 3) and only three and two nodes among five had bootstrap values higher than 70% in ISSR and RAPD dendrograms respectively. The genotypes clustered similarly with little differences in both dendrograms. In RAPD dendrogram, the genotypes grouped in two main clusters (Figure 3). The first cluster consisted of the Tunisian and the Jordanian cultivars while the other involved the varieties originated from the UK. These results suggest that Tunisian and Jordanian cultivars are related. The first cluster showed an average genetic diversity of approximately 51%. The second cluster consisting of cultivars from the UK recorded a genetic similarity of 69% between them, and an average diversity of approximately 61 % regarding the first cluster. In ISSR dendrogram (Figure 2), the major difference is that the varieties originated from Tunisia and from Jordan grouped in same cluster except the variety Mutah. Similarly, the lines and varieties from the United Kingdom were grouped in the same cluster in ISSR dendrogram. The Mutah variety was separately placed in the dendrogram and was closer to the cluster containing the UK varieties, which can be explained by the fact that this genotype (Mu) from Jordan, is two-rowed barley as well as the UK varieties.

In the first cluster of ISSR dendrogram, the Tunisian cultivars (Ar and Mr) were grouped in the same sub-cluster. Martin variety is an old genotype derived from a local germplasm collected from Algeria and was cultivated in Tunisia since 1931. This variety and the local germplasm Ardhaoui showed a similarity coefficient of 63%. Being a North African germplasm it should have passed through the same evolutionary pressures and effects as our local germplasm since it has been cultivated in Algeria for long time and then it was introduced and improved in Tunisia. This could explain their genetic resemblance (Chaabane et al. 2009).

The clustering patterns based on the two different marker systems were primarily related to the geographical distribution of the genotypes. These results support the fact that region specific variations exist, which can be explained by a long-term adaptation process to soil and climate, multiple generations of selection and overexploitation (Velasco-Ramírez et al. 2014).

The six-rows/two-rows cultivars used in this study were exactly discriminated in ISSR dendrograms. However, in RAPD dendrogram, the genotypes were separated according to their origins. Fernández et al. (2002)found the dendrogram generated by the ISSR matrix agrees better with the genealogy and the known pedigree of the barley cultivars than the dendrogram generated by the RAPD results.

3.4. Association of ISSR and RAPD data

In order to determine the correlation among dissimilarity matrices of the marker systems (ISSR and RAPD), a Mantel test was carried out to measure the degree of relationship between them. Results showed that this correlation was significant (r = 0.67; P < 0.05).Tonk et al. (2014)reported a highly significant correlation (r = 0.86) between the Jaccard's similarity matrices of RAPD and ISSR in Triticale genotypes. But, Hou et al. (2005) reported a poor correlation (r = 0.113) between RAPD and ISSR markers in barley accessions from west China.

 4. Conclusion

The present investigation was aimed at analyzing the genetic diversity present among the eight barley genotypes (Hordeum vulgare L.) using ISSR and RAPD markers.

In conclusion, the ISSR technique seems to be convenient tool to access genetic variability among barley genotypes compared to RAPD technique. However, the results of both techniques are slightly different in comparison of efficiency of markers (Table 6).

The elucidation of the relationships among the eight barley genotypes is an important resource for the breeding and management of barley germplasm.

Our long-term objective is to determine the usefulness of molecular marker diversity as a tool for gene discovery. However, more genetic studies must be conducted, employing larger samplings of germplasm collections.

5.  References

Chaabane R, El Felah M, Ben Salah H, Ben Naceur M, Abdelly S, Ramla D, Nada A, Saker M (2009) Molecular characterization of Tunisian barley (Hordeum Vulgare L.) genotypes using microsatellites (SSRs) markers. European Journal of Scientific Research 36: 6-15.

Collignon AM, Van de Sype H, Favre JM (2002) Geographical variation in random amplified polymorphic DNA and quantitative traits in Norway spruce. Canadian Journal of Forest Research 32: 266-282. doi:doi:10.1139/x01-198.

Edwards K, Johnstone C, Thompson C (1991) A simple and rapid method for the preparation of plant genomic DNA for PCR analysis. Nucleic Acids Research 19: 13-49.

Fernández M, Figueiras A, Benito C (2002) The use of ISSR and RAPD markers for detecting DNA polymorphism, genotype identification and genetic diversity among barley cultivars with known origin. Theor Appl Genet 104: 845-851. doi:10.1007/s00122-001-0848-2.

Guasmi F, Elfalleh W, Hannachi H, Fares K, Touil L, Marzougui N, Triki T, Ferchichi A (2012) The Use of ISSR and RAPD Markers for Genetic Diversity among South Tunisian Barley. ISRN Agronomy 2012: 10. doi:10.5402/2012/952196.

Hou YC, Yan ZH, Wei YM, Zheng YL (2005) Genetic diversity in barley from west China based on RAPD and ISSR analysis. Barley Genetics Newsletter 35: 9-22.

Jones CJ, Edwards KJ, Castaglione S, Winfield MO, Sala F, van de Wiel C, Bredemeijer G, Vosman B et al (1997) Reproducibility testing of RAPD, AFLP and SSR markers in plants by a network of European laboratories. Molecular Breeding 3: 381-390. doi:10.1023/A:1009612517139.

Khaled AGA, Motawea MH, Said AA (2015) Identification of ISSR and RAPD markers linked to yield traits in bread wheat under normal and drought conditions. Journal of Genetic Engineering and Biotechnology 13: 243-252. doi:10.1016/j.jgeb.2015.05.001.

Kleinhofs A, Han F (2002) Molecular mapping of the barley genome. In: Slafer G, Molina-Cano JS, Savin R, Araus JL, Romagosa I, editors, Barley Science Recent Advances from Molecular Biology to Agronomy of Yield and Quality. Food Progucts Press, New York.

Liu ZQ, Pei Y, Pu ZJ (1999) Relationship between hybrid performance and genetic diversity based on RAPD markers in wheat, Triticum aestivum L. Plant Breeding 118: 119-123. doi:10.1046/j.1439-0523.1999.118002119.x.

Mantel N (1967) The detection of disease clustering and a generalized regression approach. Cancer research 27: 209-220.

Myśków B, Milczarski P, Masojć P (2011) Comparison of RAPD, ISSR and SSR markers in assessing genetic diversity among rye (Secale cereale L.) inbred lines. Plant Breeding and Seed Science 62: 107-115. doi:10.2478/v10129-011-0009-y.

Newton AC, Flavell AJ, George TS, Leat P, Mullholland B, Ramsay L, Revoredo-Giha C, Russell J et al (2011) Crops that feed the world 4. Barley: a resilient crop? Strengths and weaknesses in the context of food security. Food Security 3: 141-178. doi:10.1007/s12571-011-0126-3.

Pérez de la Torre M, García M, Heinz R, Escandón A (2012) Analysis of genetic variability by ISSR markers in Calibrachoa caesia. Electronic Journal of Biotechnology 15: 8-8.

Perrier X, Flori A, Bonnot F (2003) Data analysis methods. In: Hamon, P., Seguin, M., Perrier, X. ,Glaszmann, J. C. Ed., Genetic diversity of cultivated tropical plants. Enfield, Science Publishers. Montpellier: 43 - 76.

Perrier X, Jacquemoud JP (2006) DARwin software. http://darwin.cirad.fr/darwin

Powell W, Morgante M, Andre C, Hanafey M, Vogel J, Tingey SV, Rafalski A (1996) The utility of RFLP, RAPD, AFLP and SSRP markers for germplasm analysis. Mol Breed: 225-238.

Rana MK, Singh S, Bhat KV (2007) RAPD, STMS and ISSR markers for genetic diversity and hybrid seed purity testing in cotton. Seed Science and Technology 35: 709-721. doi:10.15258/sst.2007.35.3.17.

Roldán-Ruiz I, Dendauw J, Van Bockstaele E, Depicker A, De Loose M (2000) AFLP markers reveal high polymorphic rates in ryegrasses (Lolium spp.). Molecular Breeding 6: 125-134. doi:10.1023/a:1009680614564.

Russell RJ, Fuller DJ, Macaulay M, Hatz GB, Jahoor A, Powell W, Waugh R (1997) Direct comparison of levels of genetic variation among barley accessions detected by RFLPs, AFLPs, SSRs and RAPDs. Theor Appl Genet 95: 714-722. doi:10.1007/s001220050617.

Sofalian O, Chaparzadeh N, Javanmard A, and Hejazi MS (2009) Study the genetic diversity of wheat landraces from northwest on Iran based on ISSR molecular markers. AGRIS 10: 466-468.

Sozen E (2010) Evaluation of ISSR markers to assess genetic variability and relationship among winter

triticale (x triticosecale wittmack) cultivars. Pakistan Journal of Botany 42: 2755-2763.

Tanyolac B (2003) Inter-simple sequence repeat (ISSR) and RAPD variation among wild barley (Hordeum. vulgare subsp. spontaneum) populations from west Turkey. Genetic Resources and Crop Evolution 50: 611-614. doi:10.1023/a:1024412814757.

Tonk FA, M. T, E. I, O. IDaT (2014) Evaluation and comparison of ISSR and RAPD markers for assessment of genetic diversity in triticale genotype. Bulgarian Journal of Agricultural Science 20 1413-1420.

Varshney RK, Chabane K, Hendre PS, Aggarwal RK, Graner A (2007) Comparative assessment of EST-SSR, EST-SNP and AFLP markers for evaluation of genetic diversity and conservation of genetic resources using wild, cultivated and elite barleys. Plant Science 173: 638-649. doi:10.1016/j.plantsci.2007.08.010.

Velasco-Ramírez AP, Torres-Morán MI, Molina-Moret S, Sánchez-González JdJ, Santacruz-Ruvalcaba F (2014) Efficiency of RAPD, ISSR, AFLP and ISTR markers for the detection of polymorphisms and genetic relationships in camote de cerro (Dioscorea spp.). Electronic Journal of Biotechnology 17: 65-71. doi:10.1016/j.ejbt.2014.01.002.

Walia H, Wilson C, Condamine P, Ismail A, Xu J, Cui X, Close T (2007) Array-based genotyping and expression analysis of barley cv. Maythorpe and Golden Promise. BMC Genomics 8: 1-14. doi:10.1186/1471-2164-8-87.

Zietkiewicz E, Rafalski A, Labuda D (1994) Genome fingerprinting by simple sequence repeat (SSR)-anchored polymerase chain reaction amplification. Genomics 20: 176-183. doi:10.1006/geno.1994.1151.
