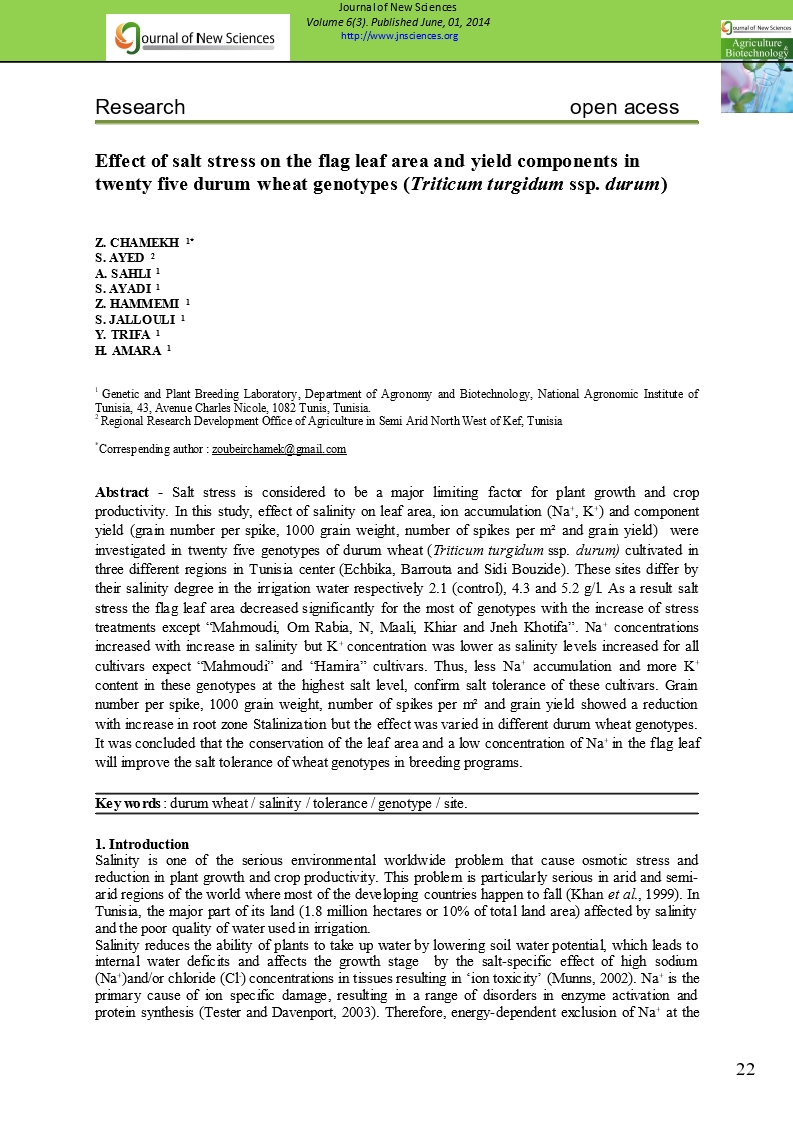

Effect of salt stress on the flag leaf area and yield components in twenty five durum wheat genotypes (Triticum turgidum ssp. durum)

Z. Chamekh ^1*

S. Ayed ²

A. Sahli ¹

S. Ayadi ¹

Z. Hammemi ¹

S. Jallouli ¹

Y. Trifa ¹

H. Amara ¹

¹ Genetic and Plant Breeding Laboratory, Department of Agronomy and Biotechnology, National Agronomic Institute of Tunisia, 43, Avenue Charles Nicole, 1082 Tunis, Tunisia.

² Regional Research Development Office of Agriculture in Semi Arid North West of Kef, Tunisia.

Abstract - Salt stress is considered to be a major limiting factor for plant growth and crop productivity. In this study, effect of salinity on leaf area, ion accumulation (Na⁺, K⁺) and component yield (grain number per spike, 1000 grain weight, number of spikes per m² and grain yield) were investigated in twenty five genotypes of durum wheat (Triticum turgidum ssp. durum) cultivated in three different regions in Tunisia center (Echbika, Barrouta and Sidi Bouzide). These sites differ by their salinity degree in the irrigation water respectively 2.1 (control), 4.3 and 5.2 g/l. As a result salt stress the flag leaf area decreased significantly for the most of genotypes with the increase of stress treatments except “Mahmoudi, Om Rabia, N, Maali, Khiar and Jneh Khotifa”. Na⁺ concentrations increased with increase in salinity but K⁺ concentration was lower as salinity levels increased for all cultivars expect “Mahmoudi” and “Hamira” cultivars. Thus, less Na⁺ accumulation and more K⁺ content in these genotypes at the highest salt level, confirm salt tolerance of these cultivars. Grain number per spike, 1000 grain weight, number of spikes per m² and grain yield showed a reduction with increase in root zone Stalinization but the effect was varied in different durum wheat genotypes. It was concluded that the conservation of the leaf area and a low concentration of Na⁺ in the flag leaf will improve the salt tolerance of wheat genotypes in breeding programs.

Key words: durum wheat / salinity / tolerance / genotype / site.

1. Introduction

Salinity is one of the serious environmental worldwide problem that cause osmotic stress and reduction in plant growth and crop productivity. This problem is particularly serious in arid and semi-arid regions of the world where most of the developing countries happen to fall (Khan et al., 1999). In Tunisia, the major part of its land (1.8 million hectares or 10% of total land area) affected by salinity and the poor quality of water used in irrigation.

Salinity reduces the ability of plants to take up water by lowering soil water potential, which leads to internal water deficits and affects the growth stage by the salt-specific effect of high sodium (Na⁺)and/or chloride (Cl^-) concentrations in tissues resulting in ‘ion toxicity’ (Munns, 2002). Na⁺ is the primary cause of ion specific damage, resulting in a range of disorders in enzyme activation and protein synthesis (Tester and Davenport, 2003). Therefore, energy-dependent exclusion of Na⁺ at the root level and maintenance of high potassium (K⁺)at the shoot level are vital for the plants to grow in saline environments (Colmer et al., 2006). Thus, the interaction between relative K⁺ and Na⁺ concentration has been considered a key factor in determining salt tolerance in plants (Willadino and Câmara, 2005). Restriction of leaf growth is among the earliest visible effects of salinity stress because leaves determine radiation interception and are the main photosynthetic organs (Taleisnik, et al., 2009). Salinity effects on leaf expansion and function are directly related to yield constraints under saline conditions (Taleisnik et al., 2009). Cereal plants are the most sensitive to salinity during the vegetative and early reproductive stages and less sensitive during flowering and during. However, a difference in the salt tolerance among genotypes may also occur at different growth stages (Zeng et al., 2002). Durum wheat (Triticum turgidum ssp. durum) is considered to be moderately tolerant of salinity (Maas, 1986). The strategy used by tolerant genotypes of durum wheat under saline stress conditions consists in limiting the reduction of leaf area to preserve its photosynthetic potentialities. Thus, the reduction in grain yield is less marked for tolerant genotype than for sensible genotypes for both levels of saline stress conditions (Alem, 2002). Crop yield is directly related to leaf area development, photosynthesis rate, and assimilate partition (Hay and Porter, 2006). Therefore, the salt tolerance of different wheat genotypes must be evaluated at different growth stages. Improving salt tolerance of wheat genotypes has been inhibited by a number of factors, such as the lack of effective evaluation methods for salt tolerance to screen the genotypes in breeding programs, low selection efficiency using overall agronomic parameters, and a complex phenomenon involving morphological, physiological and biochemical parameters among genotypes (Zeng et al., 2002). In this study, flag leaf area leaf Na⁺ and K⁺ concentration and 4 agronomic traits were measured to evaluate the salt tolerance in 25 wheat cultivars.

2. Material and Methods

2.1. Plant materials

Twenty five genotypes of durum wheat (Triticum turgidum ssp durum): 19 landraces “Aoudhay, Jeneh Khotifa, Biskri Pubescent, Agili, Bidi AP4, Azizi, Bayadha, Swebei Algia Derbessi, Mahmoudi, Souri, INRAT 69, Ward Bled, Arbi, Hamira, Sbei, Chili, Agili Glabre, Richi” and 06 high yielding genotypes “Karim, Razzek, Om Rabiaa, Nasr et Khiar” were evaluated at three different locations. The assays were conducted in three semi-arid regions in the center area of Tunisia: Echbika (S1) (35°37N, 9°56E), Barrouta (S2) (35°34N, 10°02E) and Sidi Bouzid (S3) (35°02N, 9°33E), during the growing season 2010-2011. These sites differ by the degree of salinity in the irrigation water respectively 2.1, 4.3 and 5.2 g/l.

2.2. Experimental design

The experimental design was completely randomized with three replications. Each block is composed by 25 plots (genotypes). Experimental plot area = 2 m² (10 rows of 1m length, each apart 0.2 m).

2.3. Soil analysis

Five soil samples were taken in each site (three blocs) from (0-40 cm depth). Soil analysis presented in the tables 1 and 2.

O M: Organic matter

EC: Electric conductivity

2.4. Water analysis

Irrigation water for the experimental fields was taken directly from the sounding. Under the field experiment we used a drip irrigation system because their benefit was noted to limit heterogeneity of salinity trials. The chemical composition of the water was presented in the table 3.

EC: Electric conductivity

2.5 Measured parameters

2.5.1. Flag leaf area

Flag leaf area is measured as the means of three independent measurements in three different plants in each plot after flowering. Leaf area was measured by using by Leaf Area meter (LI-200).

2.5.2. Na⁺ and K⁺ accumulation

Na⁺ and K⁺ accumulated in the flag leaf measurements were carried 3 days after flowering. Oven-dried simple flag leaf were finely ground before passing through a 2-mm sieve. About 0.5 g samples for 12 h in digesting tubes with 10 ml concentrated nitric acid and 3ml per chlorate acid, and then digested at 300 C° for 6 h.

The amount of K⁺ and Na⁺ contents was measured using an atomic absorption spectrophotometer (Sherwood 410).

2.5.3. Component yield

Grain production was determined harvesting plants at maturity from the central part of the rows of each plot, excepting 25 cm as a border at each end of the row. The dry weight was determined; the samples were dried at 65 C° for 48 h to determine the dry weight (DM). Data for number of grains per spike, 1000 grain weight, number of spikes per m² and grain yield were recorded.

2.5.4. Statistic analysis

Data were subjected to analysis of variance (ANOVA) at the 5% and 1% level. The values are expressed as the means of three independent measurement and their standard errors. The differences between the means were compared using a Fisher’s least significant difference (LSD) test at P = 0.05. Statistic analysis was carried out using computer software SPSS 10.

3. Results and discussion

Analysis of variance of flag leaf area, ion accumulation (Na⁺ and K⁺) and agronomic traits for sites and genotype factors are presented in Table 4. All traits measured were highly significant (p< 0.001) for sites and cultivars factors. This indicates the existence of genetic diversity of these traits among the wheat cultivars and it is in agreement with the results obtained by Hemati and Pakniyat (2006), who reported variation of these traits in bread and durum wheat cultivars in response to salt stress.

*: significant at the 0.05 probability level

**: Significant at the 0.01 probability level

df: degree freedom

3.1. Flag leaf area

In present study, salt stress caused a significant decrease of flag leaf area of the most genotypes with the increase of stress treatments except Azizi, Rezzak, Karim, Om Rabia, Nasr, Maali, Khiar and Jneh Khotifa (Figure 1). At 4.7 and 5.2 g/l, for example, leaf area reduced for Agili Glaber respectively by 50% and 60%. Thus, growth of leaf area is inhibited by salinity. Same results were obtained by Brungnoli and Lauteri (1991) and Alberico and Cramer (1993). Richardson and McCree (1985) believe that the greater ability of salinized plants to continue leaf expansion and carbon gain under water stress can be attributed primarily to a slower development of water stress, which prolonged the osmotic adjustment. But, it was thought that leaf area was not reliable indicators of salt tolerance (Alberico and Cramer, 1993). Probably, the negative effect of salinity on plants provoked osmotic potential by salt in the culture medium, so root cells do not obtain required water from medium.

3.2. Na⁺ and K⁺ accumulation

The leaf Na⁺ concentration was significantly increased by salinity and salinity water logging treatments in all cultivars (Figure 2). A significantly higher Na⁺ concentration in these treatments was observed in the leaves of landrace genotype. This increase was more significant for Agili Glaber, Richi and Chili genotypes. This increase was not significant for Bayadha and Swebei Algia cultivars which showed high limitation of Na⁺ accumulation in the flag leaf. A possible survival strategy of these two cultivars under saline environments is the effective compartment of excess Na⁺ by sequestering Na⁺ in roots and inhibiting transport of Na⁺ from roots to shoots. Generally, salinity increased sodium content in salt sensitive wheat cultivars (Sairam et al., 2002; Poustini and Siosemardeh, 2004). Similarly, Ashraf and Oleary (1996) reported that salt tolerance could be correlated with lower leaf accumulation of Na⁺. According to these reports, it can be concluded that Bayadha and Swebei Algia cultivars lacked the ability of excluding Na⁺ and it can be the main reason for their salt sensivity.

Although salinity did not affect K⁺ content, K⁺ concentration were significantly reduced in all the stress treatments with a greater reduction in the case of landrace genotype (Figure 3). K⁺ accumulation was less affected by salt stress than Na⁺ accumulation. High Na⁺ concentration can induce K⁺ deficiency inhibiting the activity of enzymes that require K⁺.

Thus, the interaction between relative K⁺ and Na⁺ concentration has been considered to be one of the important physiological mechanisms contributing to salt tolerance in many plant species (Chhipa and Lal, 1995; Ashraf and Khanum, 1997; Willadino and Câmara, 2005). It is well documented that a greater degree of salt tolerance in plant is associated with a more efficient system for selective uptake of K⁺ over Na⁺ (Wyn Jones et al., 1984; Noble and Rogers, 1992). Therefore, less Na⁺ accumulation and more K⁺ content in Azizi and Bayadha cultivars at the highest salt level, confirm salt tolerance of these cultivars. It seems these cultivars have mechanisms for restricting Na⁺ inclusion and transporting it to shoot tissues.

3.3. Yield parameters

Number of spike per m²

Salt stress result in a decrease in number of spike per m² for all genotype. This decrease is not significant for Mahmoudi, Aoudhay, Jneh khotifa, Bdi AP4 and Agili Glaber. The genotype Khiar, Maali, Nasr, Om Rabia and Karim showed the most decrease of the number of spike per m² (Figure 4). Same finding was obtained by Goudarzi and Pakniyat (2008) in fifteen Iranian wheat cultivars.

3.4. Grain number per spike

This parameter showed a reduction with increase of salinity level but the effect was varied in different durum wheat genotypes (Figure 5). The lowest decrease was observed for Mahmoudi, Chili and Ward Bled. Same finding was showed by Akram et al. (2002). According to Francois et al. (1994), the kernels number per spike was affected by reduction in floret viability. Similary, Maas and Grieve (1990) showed that NaCl stressed wheat during apex vegetative stage, had a shorter spikelet development stage, which resulted in fewer spikelets per spike, thus reducing the number of grains per spike. Grieve et al. (1992) found a reduction in kernels per spike of moderately salt stressed wheat and suggested that increase in number of kernels per spikelet lead to grain yield enhancement. Likewise, a considerable reduction for this parameter was recorded in sunflower under saline conditions (Wahid et al., 1999).

3.5. Thousand kernels weight

Increase in salinity decreased thousand kernels weight in most of genotypes. Maximum thousand kernels weight was produced by Maali followed by Karim and Rezzak, while the lowest was exhibited by Azizi (Figure 6). According Francois et al. (1988), salt stress accelerates maturation and grain filling in some cereal crops. Therefore, nearly consistent reduction in grain weight at the higher salinity levels could be result of shortened grain filling period as reported by Francois et al. (1994). Similarly, Akram et al. (2002) showed that salinity reduced 1000 grain weight.

3.6. Grain yield

Grain yield of different genotypes in site 2 and site 3 is reduced to 40% of its potential when the electrical conductivity was 2.42 and 3.12 dS/m^-1 respectively compared with site 1 (1.41 dS/m^-1). High yielding genotypes (Karim, Razzak, Om Rabia, Nasr, Maali and Khiar) and landraces genotypes Jneh Khotifa and Ward Bled produced more grain yield than the other genotypes. The results at the grain yield showed that landraces genotypes (Mahmoudi, Souri, Hamira and Agili Glaber) were affected the least by increasing salinity. For instance, grain yield in site 3 of Mahmoudi were decreased by 14% as compared with the control (Site 1). It is reported that reduction of yield under salt stress against control condition was used as an indicator of tolerance to salt stress (Ochiai and Matoh, 2001). Based on reduction in yield, it is clear that yield of sensitive cultivars (Azizi and Karim) has affected drastically by salt stress (Figure 7). Relating to this, Sairam et al. (2002) reported that reduction in yield of Kharchia 65 (tolerant cultivar) was lower than KRL 19 (moderately sensitive).

In conclusion, grain number per spike, 1000 grain weight, number of spikes per m² and grain yield showed a reduction with increase in root zone salinization but the effect was varied in different durum wheat genotypes. These results are supported by the findings of several workers (Grieve et al., 1993; Akram et al., 2002; Kamkar et al., 2004).

4. Conclusion

In this study, all these parameters could explain some of the mechanisms which indicate tolerance to salinity and help in understanding the physiological responses that enable plants to adapt to salinity stress and maintain growth and productivity during stress period and indicate important of these traits in breeding programs for screening and selection of tolerant varieties.

5. References

Akram M, Hussain M, Akhtar S and Rasul E (2002). Impact of NaCl salinity on yield components of some wheat accessions/varieties. Lnt. J. Agric. Biol., 1: 156–8

Alberico GJ, Cramer GR (1993). Is the salt tolerance of maize related to sodium exclusion? 1. Preliminary screening of seven cultivars. J. Plant Nutr., 16 (11), 2289–2303.

Alem C, Labhilili M, Brahimi K, Jlibene M, Nasrallah N, and Filali-Maltouf A (2002). Adaptations hydrique et photosynthétique du blé dur et du blé tendre au stress salin. C. R. Biologies, 325:1097–1109.

Ashraf M and Oleary JW (1996). Responses of some newly developed salt-tolerant genotypes of spring wheat to salt stress. 1. Yield components and ion distribution. J. Agron. Crop Sci., 176: 91-101.

Ashraf A and Khanum A (1997). Relationship between ion accumulation and growth in two-spring wheat lines differing in salt tolerance at different growth stages. J. Agron. Crop Sci., 178: 39–51

Brugnoli B, Lauteri M (1991). Effects of salinity on stomatal conductance, photosynthetic capacity, and carbon isotope discrimination of salt–tolerant (Gossypium hirsutum L.) and salt sensitive (Phaseolus vulgaris L.) C3 non-halophytes. Plant Physiol., 95: 628–635.

Chhipa BR and Lal P (1995). Na/K ratios as the basis of salt tolerance in wheat. Australian J. Agric. Res., 46: 533–539

Colmer TD, Flowers TJ and Munns R (2006). Use of wild relatives to improve salt tolerance in wheat. Journal of Experimental Botany, 57: 1059–1078.

Francois LE, Grieve CM, Maas EV and Lesch SM (1994). Time of salt stress affects growth and yield components of irrigated wheat. Agron. J., 86: 100-107.

Francois LE, Donovan TJ, Maas EV and Rubenthaler GL (1988). Effect of salinity on grain yield and quality. Vegetative growth and germination of triticale. Agron. J., 80: 642–7.

Goudarzi M and Pakniyat H (2008). Evaluation of wheat cultivars under salinity stress based on some agronomic and physiological traits. J.Agri.Soc.Sci., 1:35-38

Grieve CM and Lesch SM, Francois LE and Maas EV (1992). Analysis of main spike and yield components in salt stressed wheat. Crop Sci., 32: 697–703.

Grieve C.M., S.M. Lesch, E.V. Maas, and L.E. Francois. (1993). Leaf and spikelet primordia initiation in salt-stressed wheat. Crop Sci. 22:1286–1294.

Hay R and Porter J (2006). The physiology of crop yield. 2nd edn., Singapore: Blackwell; 2006.

Hemati, R. and H. Pakniyat, (2006). Evaluation of bread wheat (Triticum aestivum L.) and durum wheat genotypes under salinity stress. Iran J. Agric. Sci., 37: 239–49

Khan MJ, Rashid H and Ali R (1999). Inter-varietal variability in wheat grown under saline conditions. Pak. J. Biol. Sci., 2: 693-696.

Kamkar, B., M. Kafi and M.N. Mahakati, (2004). Determination of the most sensitive developmental period of wheat (Tiriticum aestivum) to salt stress to optimise saline water utilization. Proceeding of the 4th International Crop Science, Sept. 26-Oct. 1, Brisbane, Australia.

Maas EV (1986). Salt tolerance of plants. Appl. Agric. Res., 1: 12-26.

Maas EV and Grieve CM (1990). Spike and leaf development in salt stressed wheat. Crop Sci., 30: 1309–13.

Munns R (2002). Comparative physiology of salt and water stress. Plant Cell Environ., 25: 659-151.

Noble CL and Rogers ME (1992). Arguments for the use of physiological criteria for salt tolerance in crops. Plant and Soil, 146: 99–107.

Ochiai K and Matoh T (2001). Mechanism of salt tolerance in the grass species, Anneurolepidium chinense. I. Growth response to salinity and osmotic adjustment. Soil Sci. Plant Nutrition. 47, 579-585.

Poustini K and Siosemardeh A (2004). Ion distribution in wheat cultivars in response to salinity stress. Field Crops Research, 85: 125–133.

Richardson SG, McCree KJ (1985). Carbon balance and water relations of Sorghum exposed to salt and water stress. Plant Physiol., 79: 1015–1020.

Sairam RK, Roa KV and Srivastava GC (2002). Differential response of wheat cultivar genotypes to long term salinity stress in relation to oxidative stress, antioxidant activity and osmolyte concentration. Plant Sci., 163: 1037–48

Taleisnik E, Rodriguez A, Bustos D, Erdei L, Ortega L and Eugenia Senn M (2009). Leaf expansion in grasses under salt stress. J. Plant Physiol., 166: 1123–1140

Tester M and Davenport R (2003). Na+ resistance and Na+ transport in higher plants. Ann. Bot., 91: 1–25.

Wahid A, Masood I, Javed I and Rasul E (1999). Phenotypic flexibility as marker of sodium chloride tolerance in sunflower genotypes. Environ. Exp. Bot., 42: 85–94.

Willadino LG, Câmara TR (2005). Aspectos fisiol´ogicos do estresse salino em plantas. In: Nogueira, R.J.M.C., Ara´ujo, E.L., Willadino, L.G., Cavalcante, U.M.T. (Eds.), Estresses ambientais: danos e benef´ıcios em plantas. UFRPE, Imprensa Universit´aria, Recife, pp. 118–126.

Wyn Jones RG, Gorham J and McDonnell E (1984). Organic and inorganic solute contents as selection criteria for salt tolerance in triticeae. In: Staples, R.C. and G.H. Toenniessen (eds.), Salinity Tolerance in Plants, pp: 189–205; 235-49. Wiley, New York

Zeng L, Shannon MC and Grieve CM (2002). Evaluation of salt tolerance in rice genotypes by multiple agronomic parameters. Euphytica, 127: 235–245.
